Enovasense

Thick metallic coatings

Measuring range 1µm-1mm
Accuracy <2µm
Repeatability 1%
Angle tolerance ±2°

Paints and polymeric, organic coatings

Measuring range 1µm-500µm
Accuracy <0.5µm
Repeatability 0.5%
Angle tolerance ±30°

Submicrometric coatings (physical, metallic...)

Measuring range 10nm-1µm
Accuracy <20nm
Repeatability 2%
Angle tolerance ±10°

Measuring duration
0,1s to 2s
Optical power
0,01W to 10W
Distance between probe and part

20mm ± 1 to 10mm

40mm ± 1 to 10mm

Spot sizes
Ø 0.3mm - 0.8mm – 2.6mm – 3.3mm - 10mm
Minimum repetition time
0,1s
Dimensions

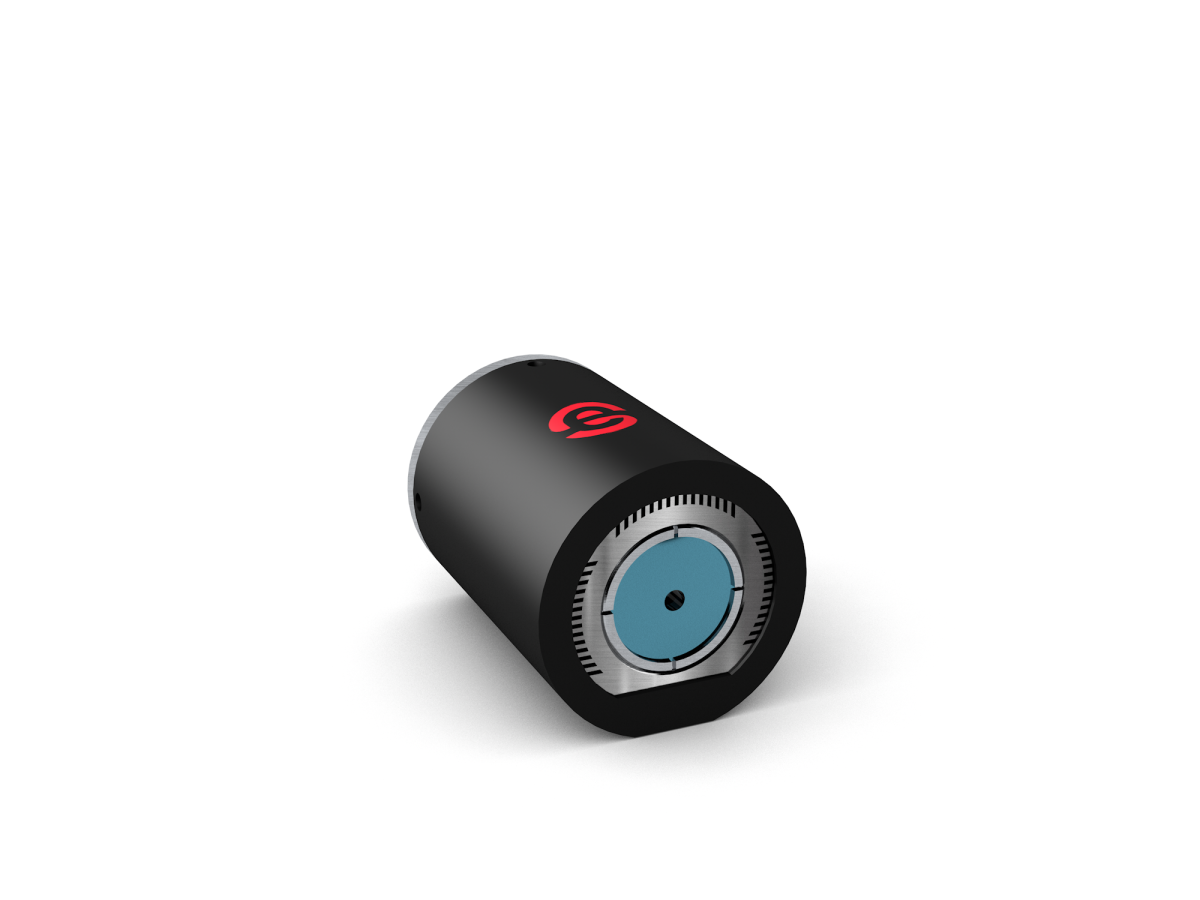

Sensor head : 93 x 66 x 66 mm

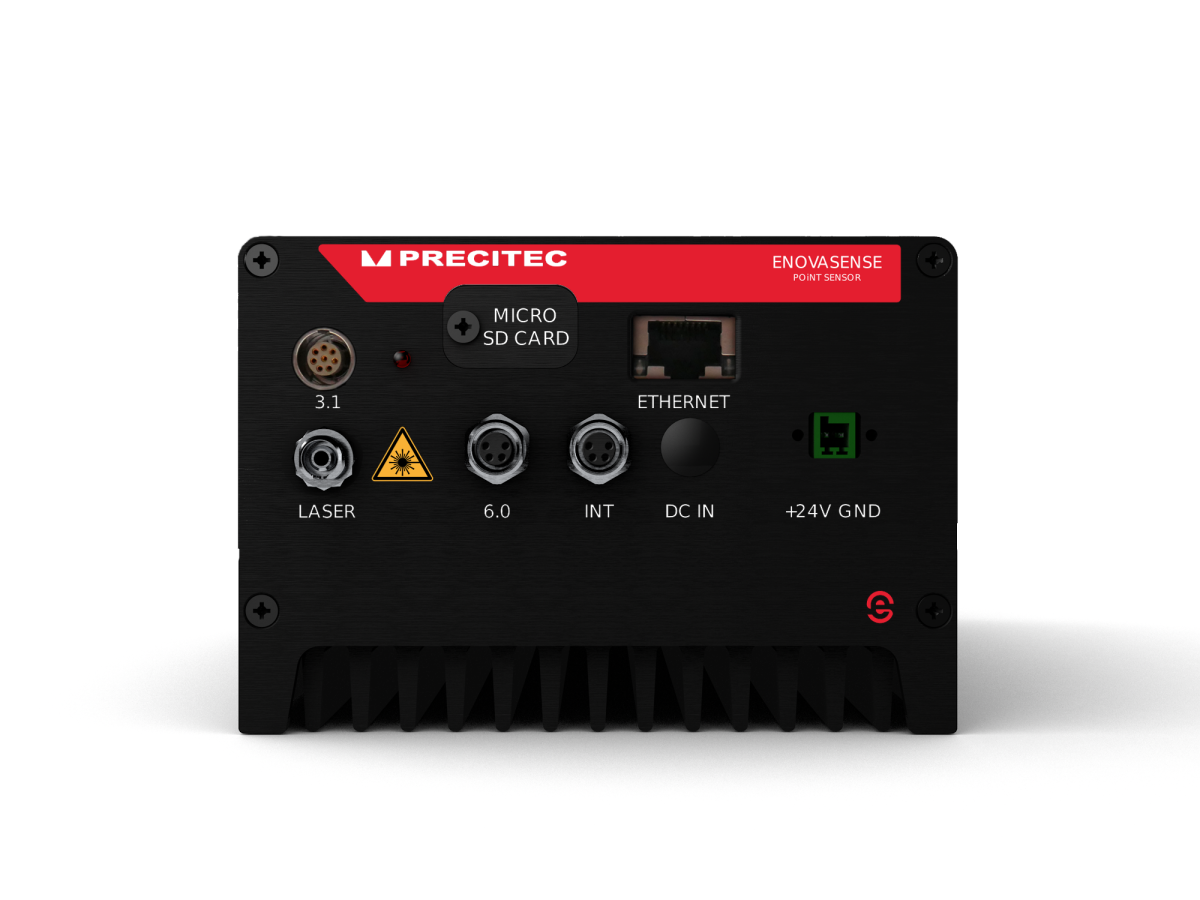

Controller : 123 x 200 x 85 mm
Weight
Sensor head : 0,4 kg

Controller : 1.7 kg
Length of the cables between measuring head and command box
1 – 20 m
Power input
100 – 240 Vac 50 – 60 Hz 4.5 – 2.5 A
Room temperature
0-50°C
Part temperature
0-40°C without correction

0-800°C with correction
Data communication protocol
TCP/IP – Ethernet IP
Input protocol
TTL 0-5V

Performances depending on the applications
