Enovasense Field Sensor HR

Non-contact under-surface area analysis — 110,592 points in a single shot

The Enovasense Field Sensor HR is a laser photothermal imaging instrument that analyses an entire surface at once — fully non-contact, fully non-destructive, in a few seconds. Instead of probing one point at a time, the Field Sensor HR illuminates a full zone of the part, captures the thermal response through a dedicated IR detector array, and returns a 384 × 288 image of what lies under the top surface.

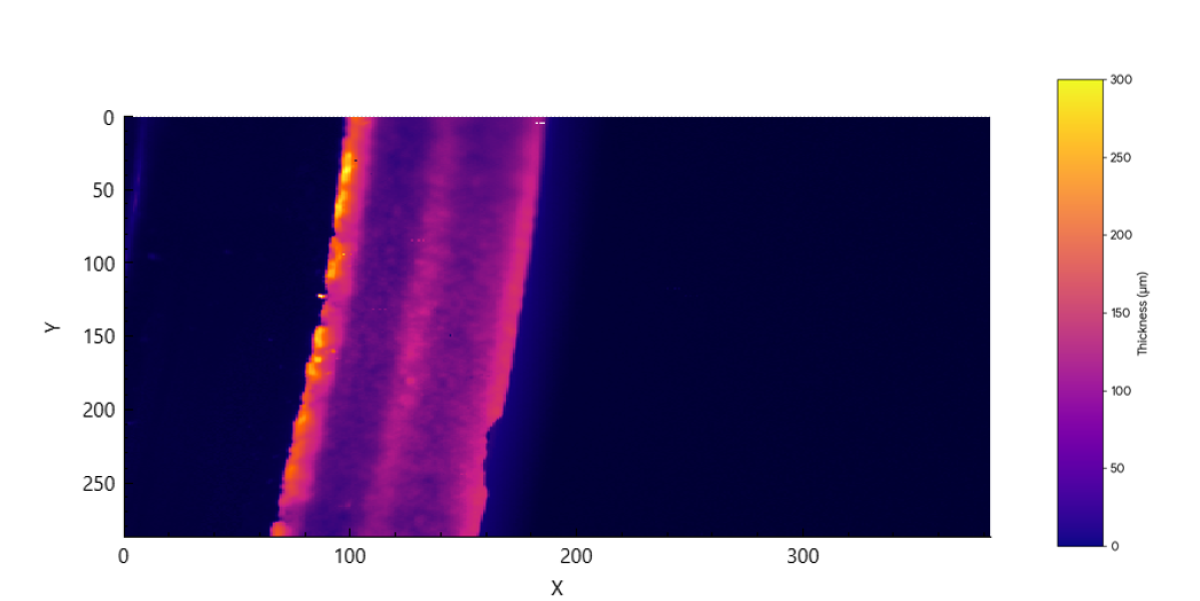

It is used to detect cracks, pin-holes, delaminations, bad adhesion, false-friend welds, air gaps and changes of material that are invisible to vision systems — and to map coating thickness over the whole surface of a part, with no automation, at a spatial resolution of 55 µm per pixel.

Non-contact Non-destructive Full-field imaging 110,592 points / shot No automation needed Under-surface defects

110,592 pts Points captured in a single shot on a 384 × 288 matrix a full surface analysed in down to 1 second	55 µm Spatial resolution per pixel each pixel an independent photothermal measurement
21×16mm Field of view analysed in a single acquisition no scanning stage, no robot required	1-2000µm Thickness mapping range on a wide variety of coatings plus qualitative defect detection

---

02 — Why choose the Field Sensor HR

Five reasons this sensor earns its place on a production line

1. Non-contact, non-destructive, and substrate-agnostic

The sensor works by sending a modulated laser beam onto the part and analysing the infrared thermal response with a built-in detector array. No probe tip touches the part, no sample is cut, no X-ray is emitted. The method is insensitive to the electrical or magnetic nature of the substrate — it works on metals, aluminium, steel, polymers, glass, and composites, and it tolerates dry or wet/uncured coatings and hot or cold parts.

2. An entire surface in a single shot — no automation required

Where a point sensor requires an XY stage or a robot to build a map, the Field Sensor HR captures the full field of view at once. Over 100,000 pixels are acquired in down to a second, each one an independent photothermal measurement. Thickness maps, defect maps and adhesion maps that used to need a full scanning station are now obtained with a fixed sensor and a static part.

3. Sees what vision systems cannot — under-surface defects

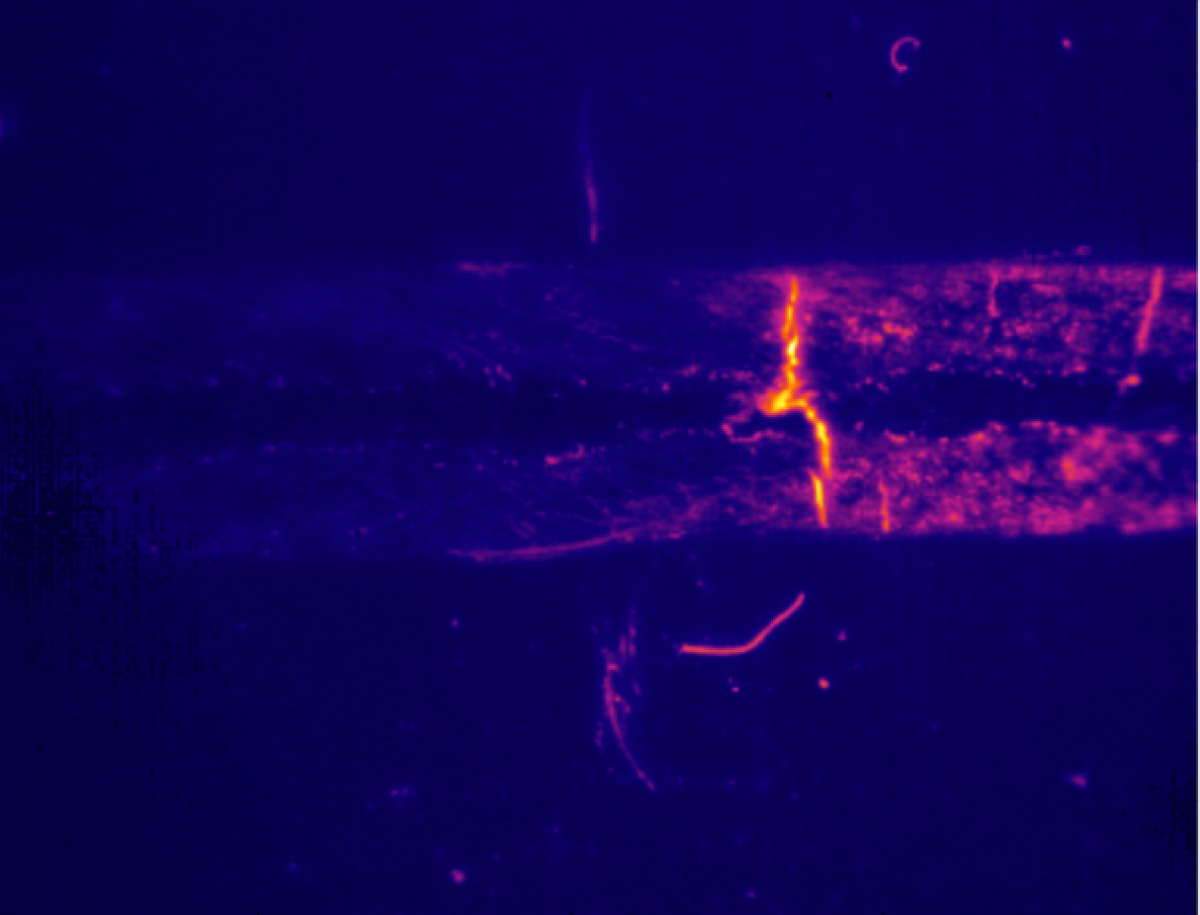

The signal is thermal, not optical. A weld that looks perfectly good on a camera but is not bonded underneath (a "false-friend" weld) is invisible to machine vision — but stands out immediately on the Field Sensor HR image, because heat cannot diffuse through the missing contact. The same principle catches air gaps, delaminations, sub-surface cracks, pin-holes, bad adhesion and changes of material.

4. Tolerant to real industrial geometries

The sensor works on flat parts, on curved parts and at inclined angles up to ±50°, with a distance tolerance of ±1 mm up to ±10 mm depending on the application. Roughness, surface finish and part temperature are not blocking factors — making the Field Sensor HR usable directly on production parts, without surface preparation.

5. Compact head, compact controller, easy integration

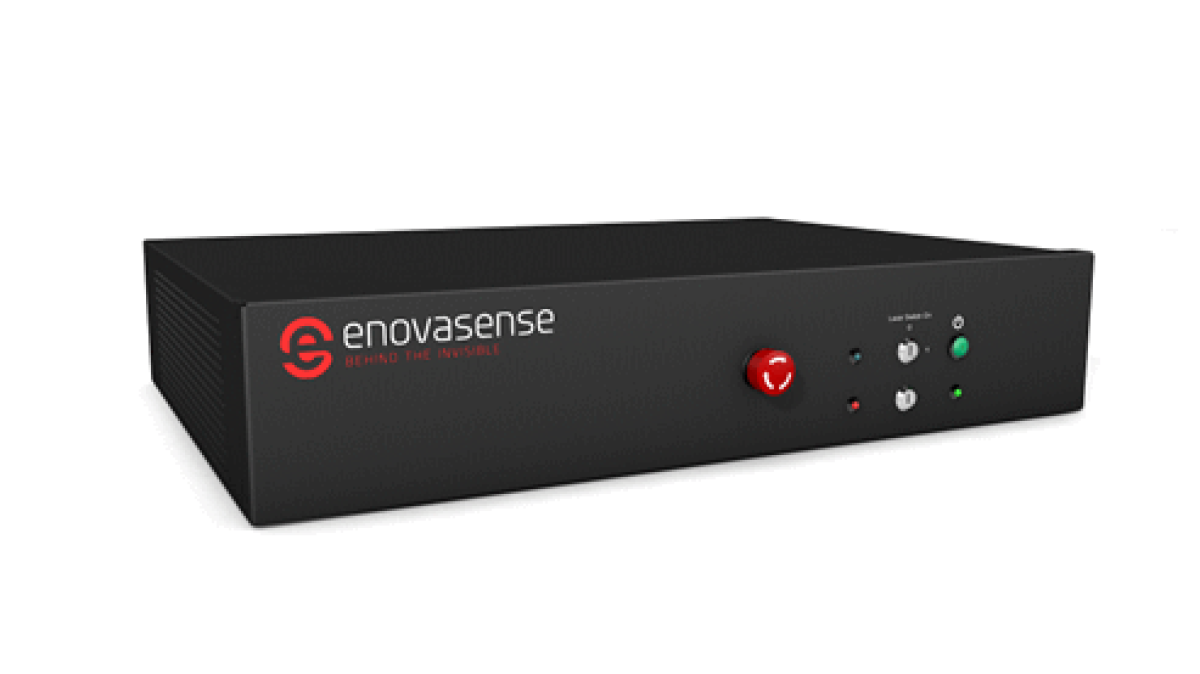

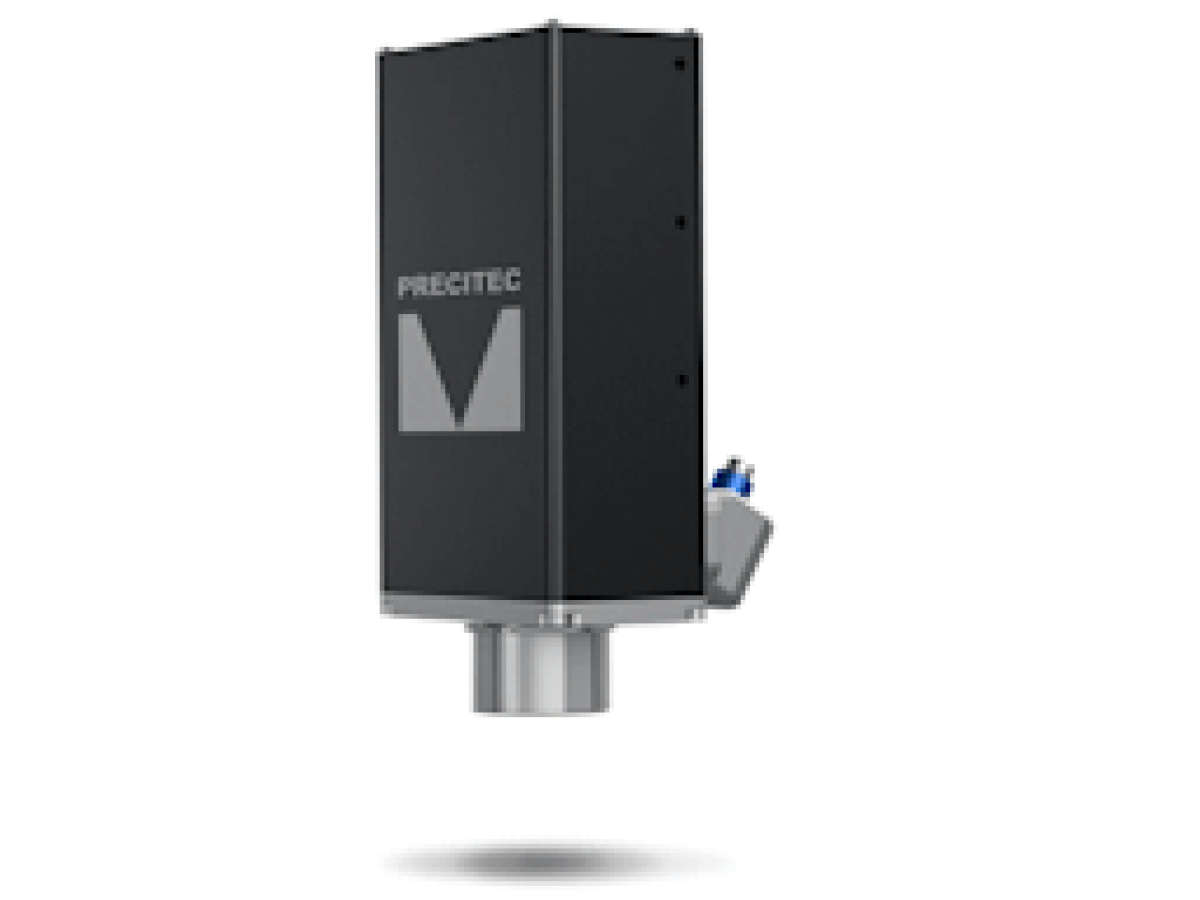

The measurement probe is a single compact block of 93 × 85 × 174 mm (400 g) that is placed facing the part. The controller is a compact unit of 315 × 200 × 150 mm (7.7 kg, 100–230 V AC) that can sit in an electrical cabinet up to 10 m away, linked to the head by one optical fiber and one electric cable. Ethernet TCP/IP output feeds the dedicated Enovasense Suite software, which also includes an ANN module to train automatic pass/fail classification.

---

03 — Applications

Where the Field Sensor HR is used

The Field Sensor HR is used whenever an area — not a point — has to be characterised: defect detection on welds and joints, quality control of bonded assemblies, full-surface coating-thickness mapping, and inspection of parts where sub-surface information is critical. Typical deployments include:

Automotive & e-mobility	False-friend weld detection, air-gap detection on laser and ultrasonic welds, bonding inspection on battery busbars, paint and primer thickness mapping
Aerospace	Thickness mapping of thermal barrier and abradable coatings, delamination detection on composite and bonded structures, cold-spray repair inspection
Medical devices	Full-surface check of bioactive and polymer coatings on implants, detection of pin-holes and coating defects on surgical tools
General industry	FKM and elastomer sealing thickness mapping on stainless steel, enamel marking on glass, rubber coating homogeneity, screen-printing inks
Consumer electronics	Inspection through epoxy insulation to verify presence and position of sub-components
Semiconductor	Surface crack and pin-hole detection on wafers

---

04 — Technology

How full-field laser photothermal imaging works

A modulated laser beam is emitted onto a 21 × 16 mm zone of the part, generating a controlled thermal wave that diffuses into the material. An IR detector array inside the probe captures the returning heat wave for every pixel of the scene, and for each pixel extracts two physical quantities — the phaseshift and the amplitude ratio between the thermal response and the laser modulation. The result is a full 384 × 288 image of the sub-surface behaviour of the part.

The modulation frequency, adjustable from 0.1 to 5 Hz, sets the probed depth: low frequencies let the thermal wave reach deeper interfaces, high frequencies favour thin coatings and near-surface defects.

Because heat diffusion is locally disturbed by anything that breaks the thermal continuity of the material, the image reveals what lies underneath the top surface: a coating interface (thickness mapping), a crack or pin-hole (surface defect), an air gap or delamination (weld quality), a sub-component hidden under an epoxy layer, or a false-friend weld where heat cannot cross the unbonded interface.

Why this technology — a summary

Photothermal imaging is fully optical and thermal: no contact with the part, no electrical or magnetic coupling, no ionising radiation. The sensor is indifferent to the magnetic properties of the substrate, to surface roughness (within a large range), to part geometry (flat, curved, inclined up to ±50°) and to the production environment (hot or cold parts, dry or wet/uncured coatings). Calibration is built from representative reference samples once, and then reused in production indefinitely.

---

05 — Technical Specifications

Full technical specifications — Enovasense Field Sensor HR

Article no. 5105791

Imaging and measurement

Measurable thickness range (Ep)	1 – 2000 µm (coating thickness mapping)
Field of view	21 mm × 16 mm
Spatial resolution	55 µm per pixel
Matrix size	384 × 288 — 110,592 points per acquisition
Acquisition time	Full image in approx. 1 s (adjustable measuring time)
Measuring rate	1 Hz to 10 Hz for the full 110,592-point image
Measured quantities	Phase shift (PHI) and amplitude (AMP) maps; calibrated value (VAL), e.g. thickness
Modulation frequency	0.1 – 5 Hz (sets the probed depth)
Angle tolerance	±5° to ±50° (depends on application)
Distance tolerance	±1 mm to ±10 mm (depends on application)
Working distance	50 mm (fixed)

Measurement probe — mechanical & optical characteristics

Probe dimensions (Lh × Wh × Hh)	93 × 85 × 174 mm
Probe weight	400 g
Front optics	Fixed front lens — no optical-tool selection required
Laser wavelength (λ)	980 nm, modulated
Maximum laser power	150 W peak / 75 W average (maximum laser intensity: 1.22 W/mm²)
Laser class	Class 4 (IEC 60825-1) — Class 1 enclosure available on request
Laser safety	Interlock input for the machine safety loop; laser off by default at software start
Probe operating temperature	< 35 °C ambient

Controller / computing unit

Controller format	Compact unit
Controller dimensions (L × W × H)	315 × 200 × 150 mm
Controller weight	7.7 kg
Integrated hardware	980 nm laser source, infrared detector electronics and laser interlock
Power supply	100–230 V AC / 50–60 Hz
Interfaces	Ethernet (PC and camera), USB, DisplayPort, laser interlock, optical-fiber output
Data interface	Ethernet TCP/IP — Enovasense Suite software — MES / SPC compatible
Safety — interlock connector	Laser locker / safety loop ready
Operating temperature	< 35 °C — indoor use, dry environment
Optical fiber between head and controller	2 – 10 m, FC/PC connector, minimum curvature radius 50 mm
Electric cable between head and controller	2 – 10 m, RJ45
Cable use temperature	< 100 °C
Computer	Windows PC connected via Ethernet; indoor use, dry environment

Software — Eno2D suite and Calibration & Analysis

Every Field Sensor HR is delivered with the Eno2D software suite for acquisition, processing and classification, and with a browser-based Calibration & Analysis application that turns raw photothermal images into calibrated thickness maps in real time.

EnoLauncher	Single entry point to all applications and projects

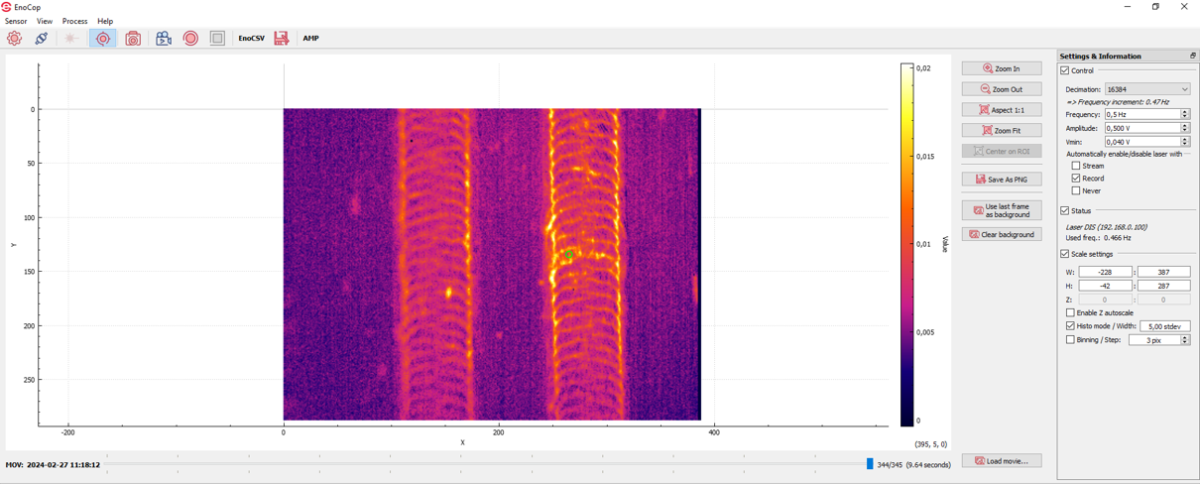

EnoCapture	Acquisition: laser and measurement settings, background, focus, recording
EnoQuick	Streamlined acquisition for routine measurements, with real-time calibrated display
EnoViewer	Image processing and visualisation: phase/amplitude, scales, binning, cross-sections
EnoANN	Neural-network pass/fail classification trained on good/bad reference parts

Calibrate	Polynomial conversion (1st / 2nd order) of phase or amplitude into thickness, applied in real time. Reference areas drawn on images, learning and test sets, R², MAE, RMSE. Calibration library with one-click activation and JSON export.
Analyse	Region statistics: mean, standard deviation, min/max, median, trimmed mean, skewness. Locked regions to compare the same zones across a series. Live monitoring of new measurements and PNG image-database export.

All values are typical. The actual performance depends on the application and on the target coating or defect. Please contact Enovasense for a performance diagnosis on your specific samples.

---

06 — Product Structure

An integrated sensor — head, controller and software in one delivery

Unlike the Enovasense Point Sensor, the Field Sensor HR is delivered as a fully integrated system: the measurement probe, the controller, the connecting cables and the software suite are all part of a single reference. Integration into a production cell is straightforward — place the head facing the part and install the controller in a cabinet up to 10 m away.

---

07 — Package Content

What is delivered with a Field Sensor HR system

A complete Field Sensor HR system is delivered as a single reference and includes:

Designation	Quantity
Enovasense Field Sensor HR measurement probe	1
Enovasense Field Sensor HR controller	1
Optical fiber between probe and controller	1
RJ45 electric cable between probe and controller	1
Power cable	1
Enovasense Suite software (Eno2D — Launcher, Capture, Viewer, ANN, Quick) and Calibration & Analysis web application	1
1-year warranty, CE certificate, quality control certificate	1

---

08 — Accessories and options

A few complementary services and accessories are available to support deployment and maintenance of the Field Sensor HR:

Reference	Accessory / service
5105893	Annual maintenance service — sensor
5105894	Annual maintenance service — control station
5105895	Delivery and installation pack

The Field Sensor HR uses a fixed front lens and a fixed 50 mm working distance — there is no optical-tool selection as with the Point Sensor. Custom integration brackets, laser-safety enclosures and application engineering support are available on request.

---

09 — Optional Integration

From sensor to turnkey control station

Because the Field Sensor HR emits a Class 4 laser, it is normally deployed inside an enclosure that keeps the Nominal Ocular Hazard Area unreachable to the operator. Enovasense can supply the sensor integrated into one of four Enovasense control stations — which include a safe enclosure, an automated positioning system, a PC and a dedicated HMI — turning the raw sensor into a turnkey laboratory, by-the-line or in-line inspection solution. The sensor itself must be ordered separately from the station.

Reference	Name	Automation	Footprint (L × W × H)	Typical use
5108103	HKM	3-axis Cartesian	600 × 600 × 710 mm	Compact bench station for small, flat or simple parts — 80 kg, fits on any standard bench
5104906	HKL	3-axis Cartesian	825 × 1282 × 943 mm	Lab / R&D / QA benches for flat or simple parts
5105790	HKL-R	6-axis robot	1025 × 1282 × 943 mm	Complex 3D parts — aerospace, turbines, medical implants
5105512	HKXL	3-axis + 1-axis loading	On request	By-the-line 100% control of large parts, such as engine blocks

Need help defining your inspection? The Field Sensor HR excels at area analysis — but the right integration depends on your defect size, part geometry and cycle time. Contact Enovasense with your samples or a description of the defect you want to catch — we will propose the best combination of sensor configuration, software processing and, if needed, control station.
